Salamander Electric Lift Small Mobile Cart

Salamander Electric Lift Small Mobile Cart

Salamander Electric Lift Small Mobile Cart  – Take control of creative, presentation and collaborative workspaces





Description

The Salamander Electric Lift Small Mobile Carts is part of a family of interactive display stands are crafted to be flexible and extremely durable. These advanced solutions will provide accessible, comfortable and ergonomically correct touchscreen positioning that enhances the user experience and improves productivity.

Compatibility

  • Salamander Electric Lift has VESA compliant displays,
    Horizontal – 200mm, 300mm, 350mm, 400mm, 600mm, Vertical – 200mm, 300mm, 350mm, 400mm
  • Microsoft Surface Hub 2S – Adapters included and sold separately (Product No. CA/MAC4), call for details.
  • Cisco Webex Boards – Cisco Webex Board 55″ Stand, see model FPS1/ELCS/GG
    Cisco Webex Board Adapters for 70″and 85″ available (Product No. CA/MAC2 and CA/MAC3), call for details.
  • Max Load 80kg

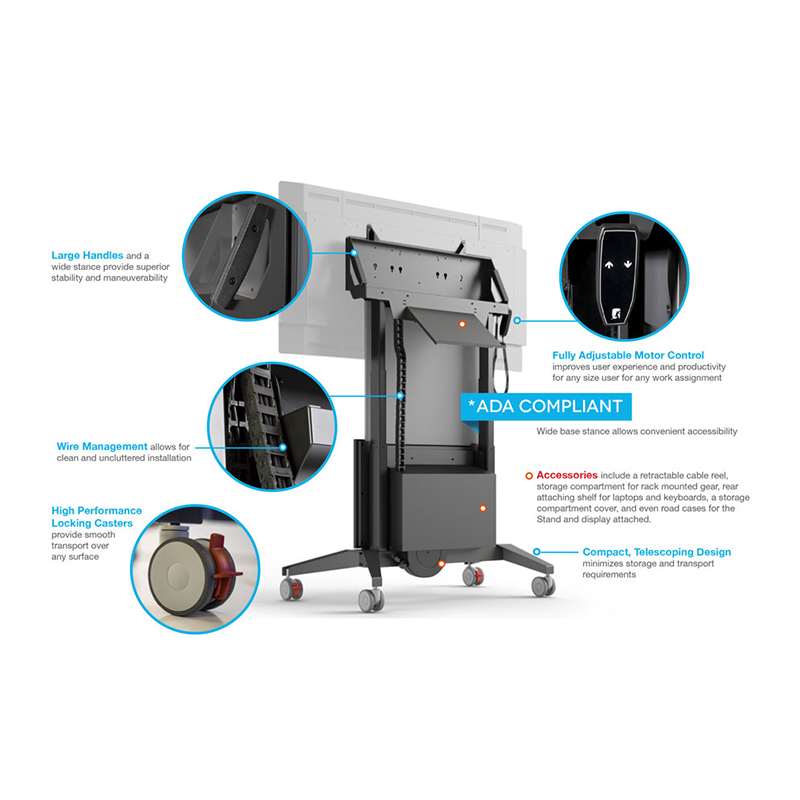

Ergonomics

  • Fully adjustable motor control improves user experience and productivity for any size user for any work assignment.
  • ADA compliant. Each user can achieve their desired ergonomic setting (waist to shoulder range of movement).

Mobility

  • The sleek design of the FPS1-EL mobile stand allows it to be moved easily between spaces. Use your interactive display in your work area then deploy it to your meeting space and reduce the number of devices in your creative production chain.
  • Large Handles and a wide stance provide superior stability and maneuverability

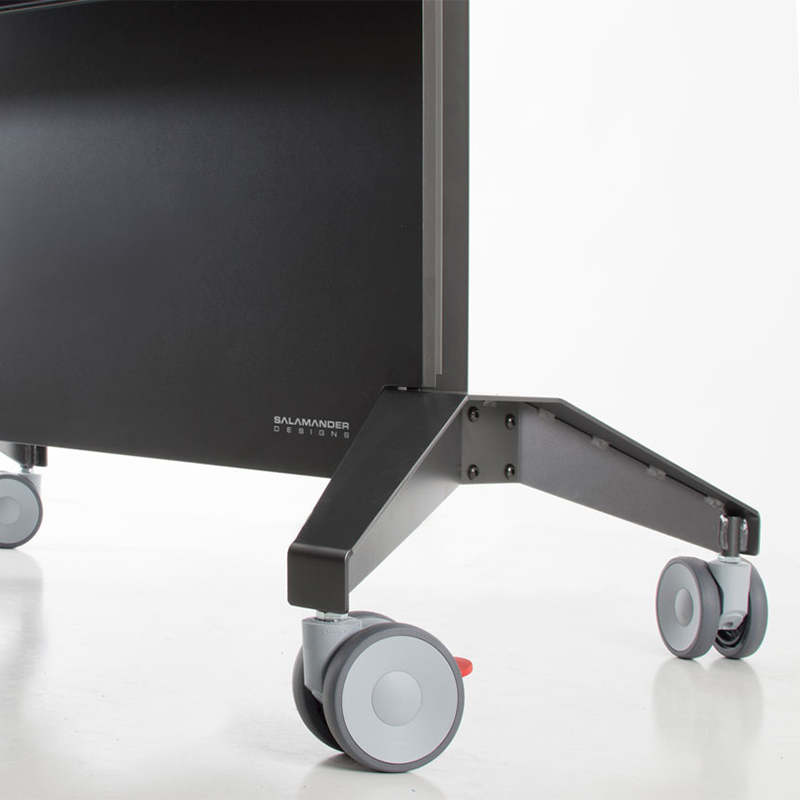

  • High performance locking casters provide smooth transport over any surface
  • Compact, Telescoping design minimizes storage and transport requirements

Design & Construction

  • Constructed with powder-coated welded steel and featuring industry-standard VESA mounts the FPS1-EL stand ensures a lifetime of improved productivity, unrivalled flexibility and value.
  • Custom finishes and custom-matched wood panels are available.

Deployment

  • FPS1-EL stand saves on engineering, trades and permitting as there no need to mount the display to a wall.
  • ATA Flight cases available for transporting Stand with Touchpanel installed for fast and easy deployment.

Wire Management & Storage

  • Compact, Telescoping design hides cables and equipment.
  • Wire Management allows clean and uncluttered installation.
  • Each interactive display stand can be customized to suit your evolving work environment with accessories that include retractable cable reel, storage compartment to enclose/lock 19” rack-mounted gear, and rear attaching shelf for laptops and keyboards. Integrate your FPS into your existing infrastructure or build-out options to design your own custom solution.

Specifications:

  • Durable Construction: Made in the USA. Powder Coated Steel, Linak Motor Components, Powder Coated and/or Veneered MDF Panels
  • VESA Pattern Horizontal: – 200mm, 300mm, 350mm, 400mm, 600mm, Vertical – 200mm, 300mm, 350mm, 400mm
  • Electrical Info Input: 90V – 240V ~, 48 Hz – 63HZ, IEC – Type Class 2, 2-prong, USA Included: Available: EU (PN 400-591) UK (PN 400-592) New Zealand, Australia and others (PN 400-593)
  • Display Size Range: Compatible with most large displays including 70” Screens, see VESA pattern and weight limits.
  • Weight Capacity: 175 lb (80 kg)
  • Accessories: Peripheral Equipment Mounting, Retractable Cable Reel, Secure Equipment Storage Cover, Keyboard Tray and More.
  • Product Dimensions: 47.84″ W (1215 mm) x 45.14 – 70.7″ H (1146.6 – 1796.6mm) x 27.38″ D (695mm)  Caster Wheels 4″ (100mm) HD, Non-Marking, Brakes on 2
  • Colour: Graphite/Gray
  • Warranty: Limited Lifetime
